Blocking SMB Traffic via Windows Firewall: Reducing Lateral Movement Risk
Analyzing default firewall exposure and implementing host-based rules to block unnecessary and risky services like SMB.

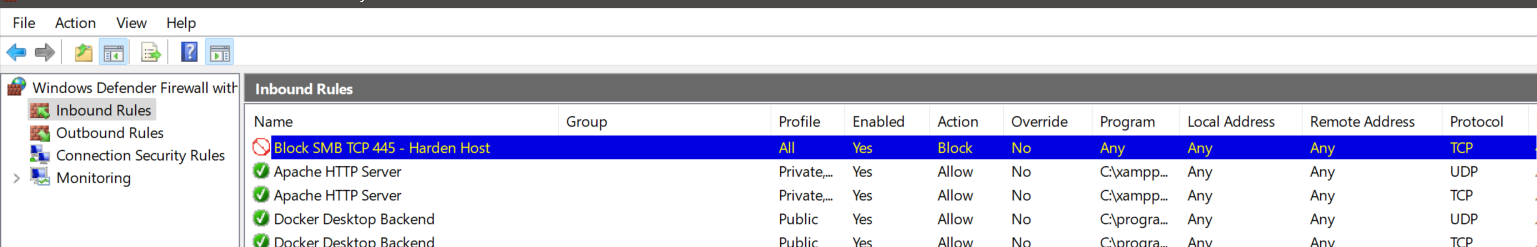

Custom rule blocking inbound SMB traffic (port 445) applied to all network profiles.
This project demonstrates a key host-hardening tactic: blocking SMB (Server Message Block) traffic using Windows Firewall with Advanced Security. SMB, used for file sharing and printer services, is frequently abused in lateral movement, worm propagation, and remote code execution attacks, most notoriously in WannaCry, EternalBlue, and NotPetya campaigns.
Why Port 445 Is a Risk?
| Threat Type | Description |
|---|---|
| Wormable exploits | Port 445 is the primary vector for EternalBlue & WannaCry |
| Lateral movement | Attackers use SMB to move between machines in a domain |
| Remote execution | Unpatched SMB services can allow unauthenticated access |
| Enumeration vector | SMB reveals shares, system names, and users to attackers |
Even if not externally accessible, internal exposure is risky in a compromised network.
Steps Taken:
1. Opened Windows Firewall Console
Via wf.msc, I launched Windows Defender Firewall with Advanced Security.
2. Reviewed Existing Rules
Navigated to Inbound Rules, sorted by port. I found:
- File and Printer Sharing (SMB-In) enabled by default on Private networks
- Allowed inbound traffic to TCP 445, UDP 137/138, all part of SMB/NBNS stack
3. Created a Custom Inbound Block Rule

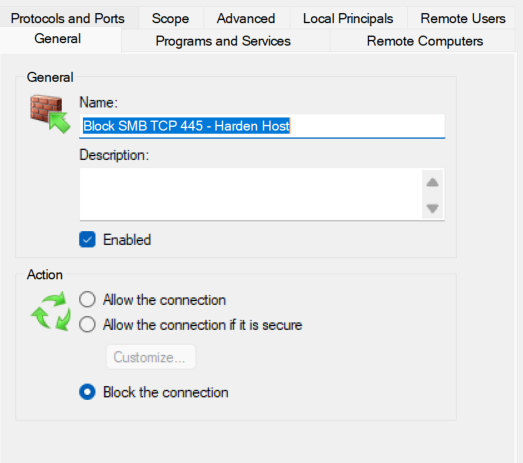

Custom rule blocking inbound SMB traffic (port 445) properties assessed correctly.
- Rule Type: Port
- Protocol: TCP
- Port: 445
- Action: Block the connection
- Profile: All (Domain, Private, Public)
- Name:
Block SMB TCP 445 - Harden Host
The rule was placed above the existing allow rules for full effect.
Verification & Testing
To validate the firewall was working:
- I attempted to access the host via nmap and other tools.
Custom rule blocking inbound SMB traffic (port 445) confirmed.
